HYDRAULIC PRESSING MACHINE MANUFACTURES

Project-Three-Insys-Electrical

Application

Hydraulic Pressing Machine

Product

PL100 Base Module, Analog Expansion module, Renu HMI, PT100 to 4-20mA transducer.

Description

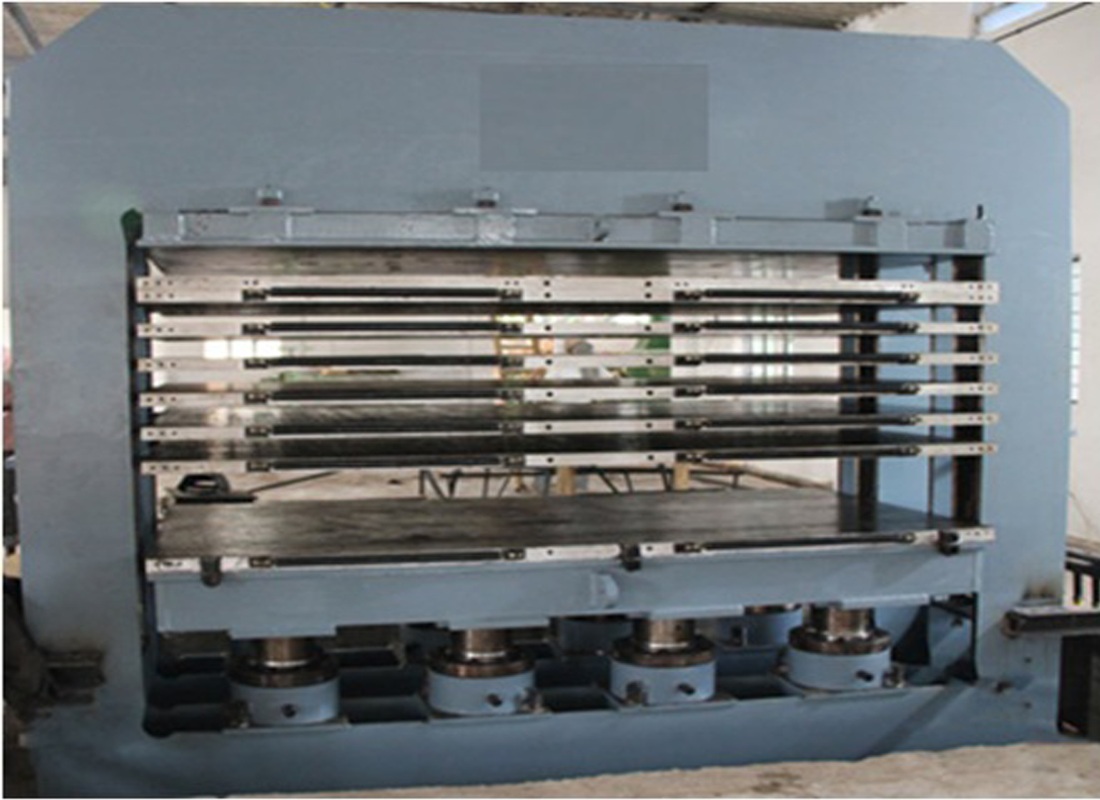

This machine is used for manufacturing plywood by pressing wood raw materials with gum at high pressure. For that the press will apply pressure of about 250bar for certain minutes or hours. After the time delay the press will release. It consists of one hydraulic press, hydraulic pump, oil tank, heater & control panel (includes PLC, HMI, contactors etc..). Heater is meant to maintain the temperature of the oil between 40 -120 ⁰C. Pump will maintain pressure between 200 – 250bars. Entire process is controlled by PLC & HMI.

System Components

Hydraulic Press

Hydraulic Pump

Oil Tank

Heater System

Control Panel

PLC & HMI

Technical Parameters

Operating Conditions

Pressure Range: 200 - 250 bar
Temperature Range: 40 - 120°C
Process Type: Time-based Pressing

Control System

Base Module: PL100
HMI: Renu HMI
Temperature Sensor: PT100

Manufacturing Process

1

Wood & Gum Loading

2

High Pressure Application

3

Time Delay Process

4

Press Release & Finish

Key Features

Automated pressure control
Temperature monitoring
PLC-based process control
HMI operator interface
