HIGH TENSION CT & PT MANUFACTURES

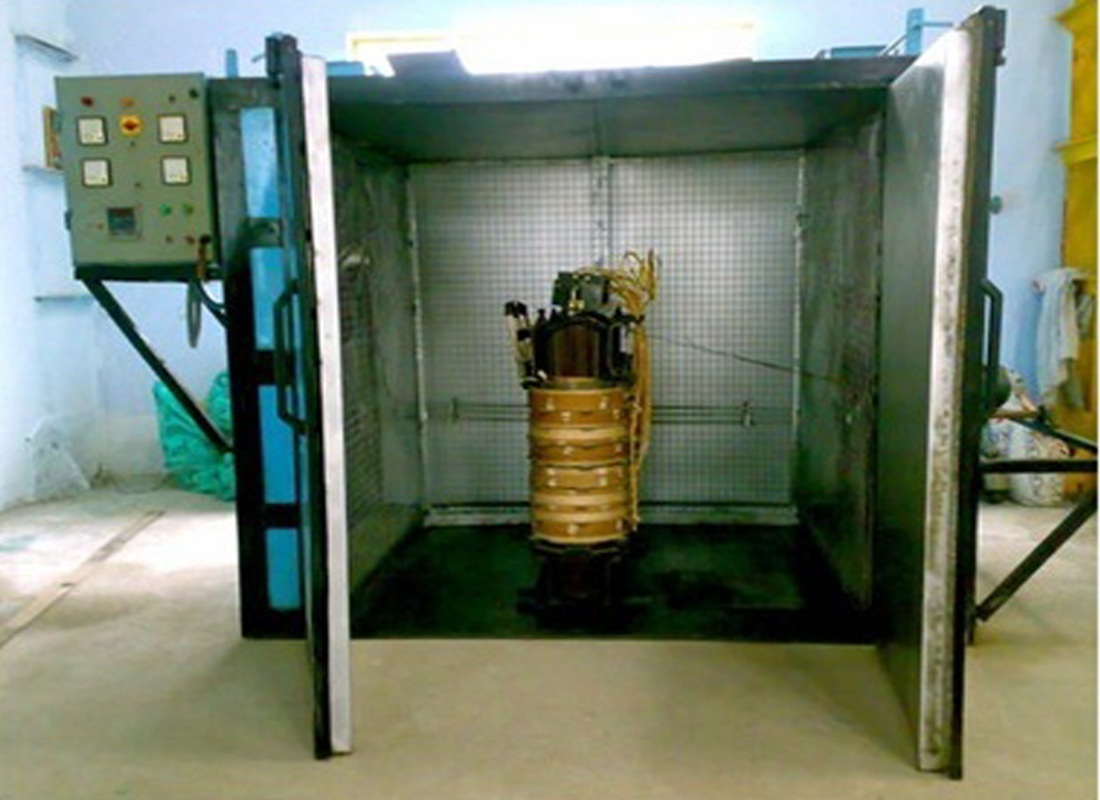

Project-Five-Insys-Electrical

Application

Heating Chamber

Product

Genie NX PLC, PR69 PID Controller, Unison PHT SSR.

Description

This chamber is used for casting CT & PT. This chamber should maintain one constant temperature for several hours and another value of temperature for another several hours & the time should be retentive. For this application two PID's (4 – 20mA o/p) along with Genie NX smart relay is used. For precise temperature control Unison Phase Angle Control SSR is used. In one pid set value for eg:-80⁰C for 8hrs & in 2nd pid 120⁰C for 4hrs. After 8hrs the o/p will switch to 2nd pid. When power goes and it should run for remaining time only. Hour meter feature of plc is used.

Temperature Control Process

1

First Phase

Temperature: 80°C
Duration: 8 Hours
PID: First Controller
2

Second Phase

Temperature: 120°C
Duration: 4 Hours
PID: Second Controller

System Components

Genie NX PLC

Main Controller

PR69 PID

Temperature Control

Unison SSR

Phase Angle Control

Technical Specifications

Control Parameters

PID Output: 4-20mA
Controller Type: Dual PID
SSR Control: Phase Angle

Process Features

Time Retention: Yes
Power Recovery: Automatic
Hour Meter: Built-in PLC

Key Features

Dual temperature control
Precise phase angle control
Power failure recovery
Retentive timing system
